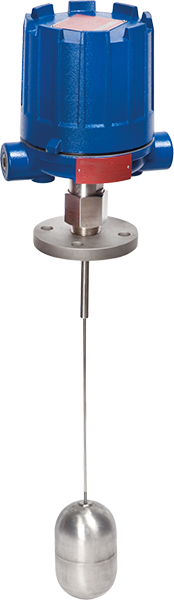

T20 / T21 Vertical float switches

Magnetrol International

T20 are single stage float switches with narrow differential destined for high or low liquid level alarm in storage or process vessels.

T21 are dual stage float switches with narrow differential destined for high and low liquid level alarm in storage or process vessels where wide space between level alarms is required.

Approvals & certificates

PED
CE
NACE
ATEX Ex i
ATEX Ex d
EAC Ex
FM
IECEx
KOSHA
INMETRO
LR

Operating principle is based on the buoyancy force of a process liquid which acts on the float causing the float to move with the liquid surface. The movement of the float moves an attraction sleeve into the field of the switch magnet, pulling the magnet toward the sleeve and actuating the switch.

Float switches are available in two types:
- T20 – float switches destined for top mounting on storage or process vessels. Switches are equipped in one microswitch and on float which can detect level up to 1219 mm depth. Available are with flanged or threaded connections.
- T21 – float switches equipped in two independent microswicthes and two floats which allows to alarm high and low level with distance between them from 203 up to 1219 mm. In case of applications where medium is turbulent T21 switches can be equipped in external cages which stabilize floats movement.
Advanatges
- Maximum medium temperature: up to 400 °C
- Maximum pressure: up to 41,3 bar
- Available hermetically sealed and pneumatic switches
- High and low alarm level T21
- Minimum medium density: 0,6 kg/dm³
- Standard anti corrosive protection
- Interface calibration
- Optional NACE construction
- Optionally delivered with float cages
- Variable level, interface level
- Output signal VDC switch, VAC switch
- ATEX Ex i, Ex d
- Process connection 1 NPT male, other
- Sensor / wetted parts material 316/316L
- Power supply external 24 VDC, external 230 VAC
- Electrical connection M20x1.5 female, 3/4 NPT female
- Housing aluminum
- Ingress protection rating IP66, IP55
`

Pressure

Liquid level

Liquid & gas flow

Valves

Solids level

Solids flow

Moisture

Dust monitors

Temperature

Thermography

Gas detection

Control

T20 / T21 Vertical float switches

Approvals & certificates

Float switches are available in two types:

Advanatges

Magnetrol V type switches User manual

Magnetrol Hermetically sealed switches User manual

Magnetrol Housings and switches of level switches User manual

Magnetrol Type J pneumatic switches User manual

Magnetrol Type K pneumatic switches User manual

Magnetrol T20 T21 Datasheet

Magnetrol T20 T21 User manual

Magnetrol T20 T21 Report FMEDA SIL

Magnetrol T20 T21 Certificate IECEx Ex d

Magnetrol T20 T21 Certificate ATEX Ex ia

Magnetrol T20 T21 Certificate ATEX Ex d

Similar products

A 01 140 Float switches

HA 24E 02 Float switches

Series 3 Caged float switches

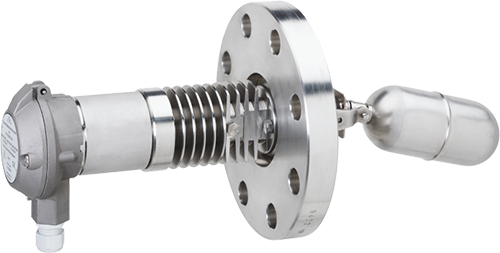

5TDI 22CF 041 Float switches
