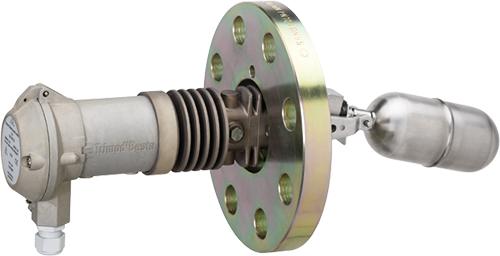

HA 24E 02 Float switches

Bachofen

Bachofen

Pływakowe sygnalizatory poziomu Trimod Besta HA 24E 02

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.
This model is perfect for applications where high temperature or/and high pressure is applied, for example for the protection of heat exchangers, for the natural gas filters or for heat regeneration systems.

Approvals & certificates

  • PED PED
  • CE CE
  • EAC Ex EAC Ex
  • SIL 2 SIL 2
  • DNV DNV
  • LR LR
  • ABS ABS
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads

  • What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • Side mounted
    • SPDT microswitch
    • Nominal pressure: PN 100 according to EN/DIN
    • Temperature: from 0°C to +400°C
    • Density of liquid: form 0,7 kg/l
    • Housing material: sea water resistant die cast aluminium
    • Enclosure: IP65
    • Flange connections according to DIN 2501 / EN1092-1 or ANSI

    Options:

    • ATEX Ex ia or Ex d approval
    • NAMUR output, 2x SPDT, pneumatic
    • IP67 or IP68 housing
    • Nominal pressure: to PN320 (dependent on flange class and temperature)
    • PED certificate
    • Variable level
    • Output signal VDC switch, VAC switch
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP65, IP67, IP68
  • `

    1. Bachofen TrimodBesta Series PED Certificate

      1.2MB | ENG

    2. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    3. Bachofen TrimodBesta Series SIL Certificate

      126kb | ENG

    4. Bachofen TrimodBesta Series Exida FMEDA SIL Report

      264kb | ENG

    5. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    6. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    7. Bachofen TrimodBesta LR approval

      814kb | ENG

    8. Bachofen TrimodBesta RMRS approval

      1.2MB | ENG

    9. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
