A 01 140 Float switches

Bachofen

Bachofen

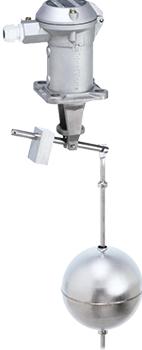

Pływakowy sygnalizator poziomu Trimod Besta A 01 140

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

The following model is dedicated for vertical mounting. These float switches can be used for pump control (two switch points) as well as for alarm duty (one switch point).

Approvals & certificates

  • CE CE
  • EAC Ex EAC Ex
  • SIL 2 SIL 2
  • BV BV
  • DNV DNV
  • LR LR
  • ABS ABS
  • RINA RINA
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads
  • What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • For vertical mounting
    • SPDT microswitch
    • Nominal pressure: PN 16 according to EN/DIN
    • Temperature: max +300°C
    •  Density of liquid: from 0,3 kg/l
    • Housing material: sea water resistant die cast aluminium
    •  Enclosure: IP65

    Options:

    • ATEX Ex ia or Ex d approval
    • NAMUR output, 2x SPDT, pneumatic
    • IP67 or IP68 housing
    • Variable level
    • Output signal VDC switch, VAC switch
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP65, IP67, IP68
  • `
    1. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    2. Bachofen TrimodBesta Series SIL Certificate

      126kb | ENG

    3. Bachofen TrimodBesta Series Exida FMEDA SIL Report

      264kb | ENG

    4. Bachofen TrimodBesta A 01 140 Installation manual

      299kb | ENG

    5. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    6. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    7. Bachofen TrimodBesta DNV GL approval

      1.6MB | ENG

    8. Bachofen TrimodBesta LR approval

      814kb | ENG

    9. Bachofen TrimodBesta RINA approval

      1020kb | ENG

    10. Bachofen TrimodBesta RMRS approval

      1.2MB | ENG

    11. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
