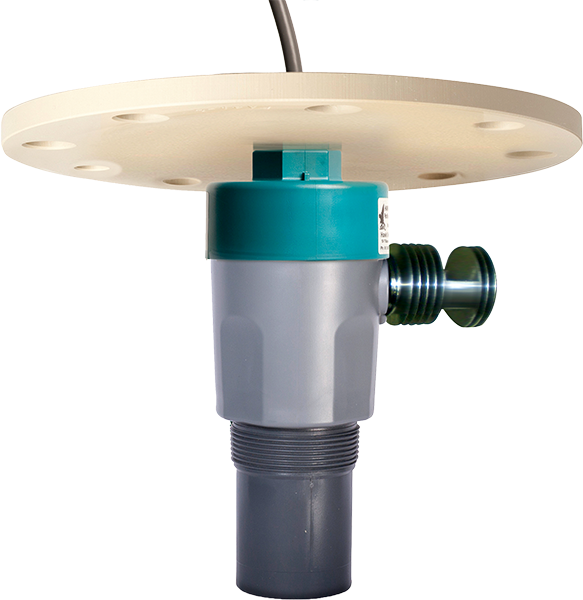

Sultan - flow Flow measurement in open channels

Hawk

Advanced non-contact flow measurement system.
The Sultan Flow measurement system operates by transmitting an ultrasonic signal from its transducer towards the liquid being monitored.

Approvals & certificates

CE
ATEX Ex i
IECEx
HART®
Modbus®

Principle of operation:

The Sultan Flow system uses sophisticated software to locate and track the correct echo without being affected by echos from fixed objects or changes in the liquid surface. When the liquid level or surface conditions change, the system follows preselected signal tracking parameters. In the event of a total loss of signal, the system adopts signal recovery routines to relocate the correct liquid level.

The system employs automatic gain control to compensate for changes in echo amplitude due to variations in environmental conditions. Continuous current, voltage and relay outputs are provided. These outputs can be programmed for failsafe conditions in the event of a loss of signal or system malfunction.

Primary areas of application:

• Open Channel Flow
• Water treatment
• Sewage treatment
• Irrigation
• Industrial waste
• Power waste
• Environmental monitoring
• Special flow requirements for unusual flow channels
- Variable flow
- Output signal 4..20 mA analogue, VDC switch, VAC switch
- Digital communication HART®
- ATEX Ex i
- Process connection 2 NPT male, other
- Sensor / wetted parts material PTFE
- Power supply 2 wire 24 VDC 4-20mA loop, external 24 VDC, external 230 VAC
- Electrical connection leadwires
- Ingress protection rating IP66, IP67
`
