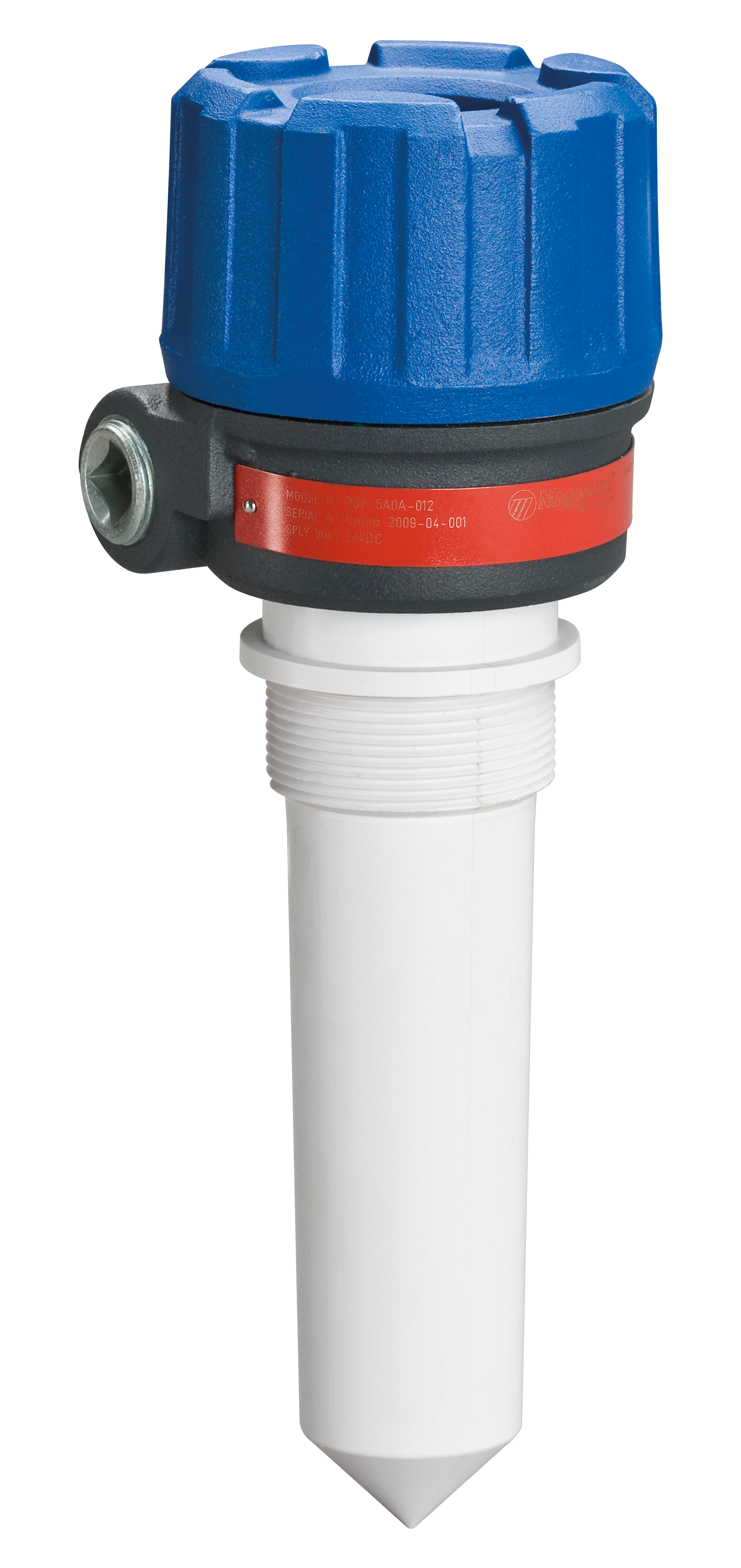

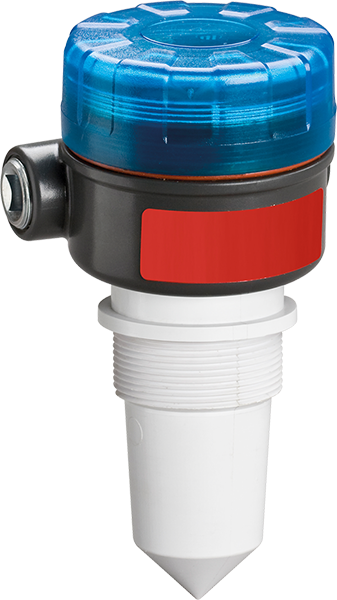

R82 Economic non-contact radar

Magnetrol International

Economic and compact non-contact radar for continuous measurement of liquid level, volume or flow.

Loop powered becomes an ideal alternative for ultrasonic transmitters used in ordinary applications.

R82 measures effectively even when atmospheres above the liquid are saturated with vapor.

Approvals & certificates

CE
ATEX Ex i
EAC Ex
FM
IECEx
INMETRO
HART®

R82 is an economic, loop powered non-contact radar which becomes an ideal alternative for ultrasonic transmitters used in ordinary applications.

R82 measures effectively even when atmospheres above the liquid are saturated with vapors.

Pulse Burst technology and advanced signal processing manage common disturbances such as false echoes caused by obstructions, multi-path reflections from tank sidewalls or turbulence caused by agitators.
Advantages

Measuring range: up to 12 m

Medium temperature: -40 to 95 ºC

Maximum pressure: 13,8 bar

2-wire loop powered intrinsically safe level transmitter

Rotatable polarized microwave beam for obtaining maximal efficiency

Fast and easy configuration via local LCD with 4 programming buttons

False echo rejection

Flow measurement function in open channels

Fast response for applications with rapid level change
- Variable level, flow
- Output signal 4..20 mA analogue
- Digital communication HART®
- Accuracy 0.05%
- Repeatablity 0.025%
- ATEX Ex i
- Local display yes
- Process connection 2 NPT male, other
- Sensor / wetted parts material PTFE, PP
- Power supply 2 wire 24 VDC 4-20mA loop
- Electrical connection M20x1.5 female, 3/4 NPT female
- Housing aluminum, Lexan™
- Ingress protection rating IP66, IP67
`
