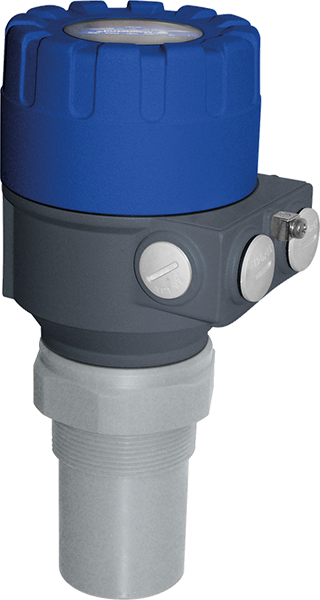

Echotel 335 4-wire non-contact ultrasonic transmitter

Magnetrol International

4-wire non-contact ultrasonic flow, volume and liquid level transmitter which can be powered with 255 VAC or 24 VDC also.

Echotel® 335 principle of operation consist on emitting ultrasonic waves towards the liquid surface that after reflection return to the transmitter. By measuring “time of flight” of ultrasonic wave transmitter calculates liquid level.

Approvals & certificates

4-wire non-contact ultrasonic flow, volume and liquid level transmitter which can be powered with 255 VAC or 24 VDC also.

Echotel® 335 principle of operation consist on emitting ultrasonic waves towards the liquid surface that after reflection return to the transmitter. By measuring “time of flight” of ultrasonic wave transmitter calculates liquid level.

Ultrasonic transmitter Echotel® 335 finds its use in non-demanding level measurement applications where vaporization, mixing and foam at the liquid surface are not present.

Advantages
- Measuring range: up to 8 m
- Medium temperature: -30 to 90 °C
- Maximum pressure: 3 bar
- Temperature compensation
- Local LCD with 4 programming buttons
- Bar graph display for liquid level % or echo strength
- Narrow, 7 degree beam angle for stronger focusing of transmitted signal
- Additional SPDT relay output for level switch point, diagnostics or remote flow totalization
- 32 - point vessel linearization
- False echo rejection
- Flow measurement function in open channels
- Flow totalizer function
- Variable level, flow
- Output signal 4..20 mA analogue, VDC switch, VAC switch
- Accuracy 0.2%, 0.05%
- Local display yes
- Process connection 2 NPT male
- Sensor / wetted parts material PP, Kynar® / PVDF
- Power supply external 24 VDC, external 230 VAC
- Electrical connection M20x1.5 female, 1/2 NPT female
- Housing aluminum
- Ingress protection rating IP67
`
