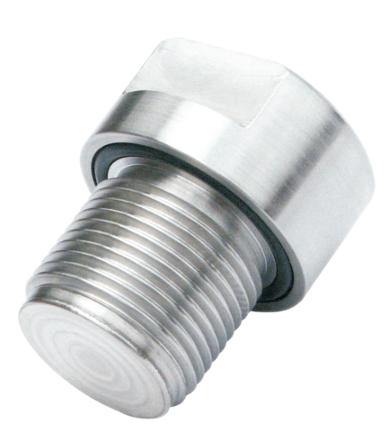

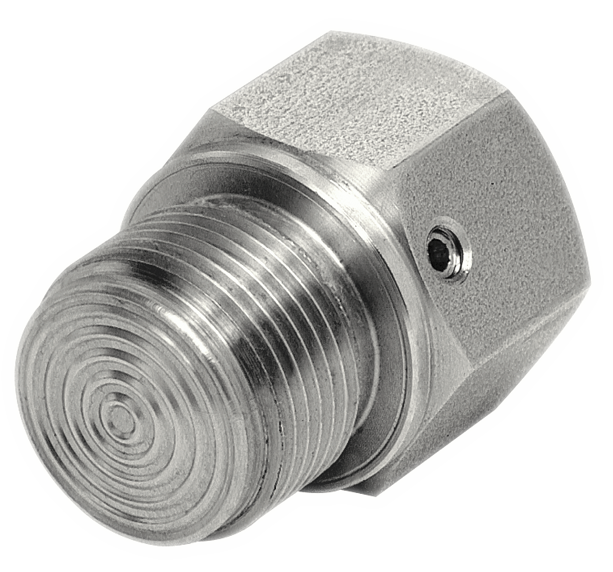

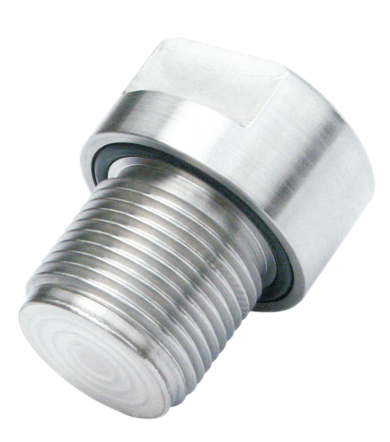

STF Threaded diaphragm seals with face diaphragm

MERCON

Compact type of separators with threaded connection and diaphragm used mainly for scenic lines.

Welded construction and low purchase price are the key advantages of these separators.

Threaded diaphragm seals with a flush diaphragm are used mostly on scenic lines.

Application
Varnishing

Chemical industry

petrochemical industry
Features
Flush diaphragm

Welded separator

Threaded connection

A wide choice of connections for measuring instrument

A wide range of materials for measuring diaphragm

Several types of steel for the body

The applicability of the reinforcing capillary made of stainless steel

The applicability of the heatsink

Several types of filling liquid measuring system

Low price
- Variable pressure
- Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 1-1/2 NPT male, 2 NPT male
- Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, tantalum, Monel, Duplex, titanium
`
1. MERCON STF Karta katalogowa

  197kb | POL
2. MERCON STF Datasheet

  177kb | ENG
