Simpliport® 180 Bi-Color Ported Water Gages
Clark-Reliance
Installed worldwide since 1962, Simpliport® Boiler Water Level Glass Gages provide reliable direct-reading, bi-color indication up to 206 Bar. Continuous advancements to the Simpliport design have made them easier to install, easier to maintain and now, much easier to view.
-
Installed worldwide since 1962, Simpliport® Boiler Water Level Glass Gages provide reliable direct-reading, bi-color, 180° view indication up to 206 Bar. Continuous advancements to the Simpliport design have made them easier to install, easier to maintain and now, much easier to view.
Principle of operation

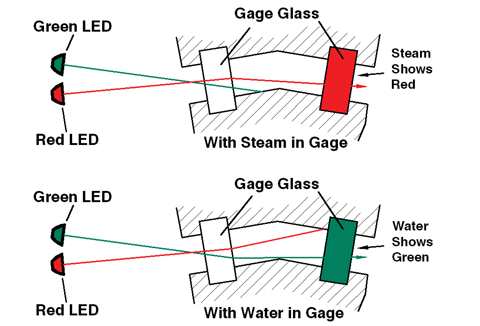

The gage operates on the reliable principles of light refraction. Light does not refract through water on the same line that light refracts through steam. The Simpliport gage indicates water level by displaying green ports for water and red ports for steam.
Simpliport 180 level gauge - maintenance
Features
- any angle, any distance view
- indication range: od 260 mm do 1,8 m
- maximum pressure: 206 bar
- easy field retrofits, easy new mounting
- easy parts replacement
- any angle, any distance view
-
- Variable level
