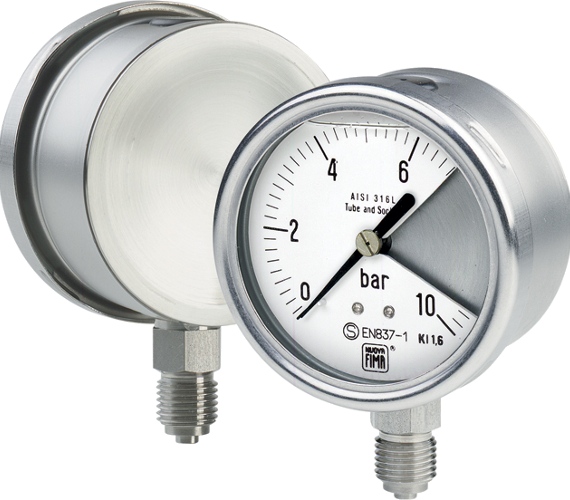

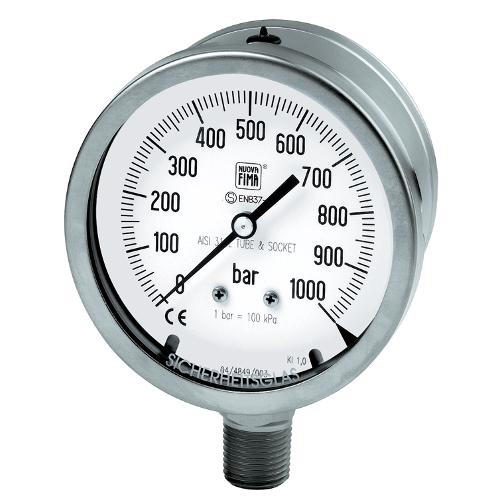

MGS20 Safety stainless steel pressure gauges

Nuova Fima

Nuova Fima

Manometr kwasoodporny bezpieczny z litą przegrodą MGS20

All stainless steel pressure gauges build built in conformity with the construction and safety specifications of EN 837-1 / S3 and ASME B40.1 standards.

Approvals & certificates

  • CE CE
  • PED PED
  • ATEX Ex c ATEX Ex c
  1. Features
  2. Specification
  3. Downloads

  • Safety stainless steel pressure gauges meet increased security requirements. They are made in accordance with EN 837-1 / S3 and ASME B40.1.
    Designed for operation in harsh environments with hazardous working conditions. Extensive use of gas and liquid media which do not crystallize and are not sticky.

    Application

    • Chemical industry
    • Petrochemical industry
    • Power engineering
    • Water purification
    • Oil & Gas
    • Mechanical engineering (OEM)
    • Power Industry
    • Technical gases

    Features

    • Safety version
    • Solid front compartment
    • Class S3 according to EN 837-1
    • Stainless steel construction
    • The mechanism of measurement: Bourdon tube
    • Measuring range from 0..1 bar to 0..1000 bar and vacuum from -1..0 bar to -1..24 bar
    • The maximum medium temperature of 150 deg. C (dry gauge), 65 deg. C (filled pressure gauge)
    • TIG welding to the casing connection
    • Available dry or filled with glycerin or silicone oil
    • IP55, IP67, depending on the version
    • Vibration, pulsation and shock resistant

    • Variable pressure
    • Output signal none
    • Accuracy 1,0%
    • ATEX Ex c
    • Process connection 1/4 BSPP male, 1/2 BSPP male, M20x1.5 male, 1/2 NPT male
    • Sensor / wetted parts material 316/316L
    • Housing stainless steel
    • Ingress protection rating IP67, IP55
  • `

    1. NF MGS20 Datasheet

      154kb | ENG

    2. NF MGS20 Datasheet ATEX

      130kb | ENG

    3. NF MGS20 Manual

      204kb | ENG
