Hygenic Eclipse® 705 Hygenic design

Magnetrol International

Guided wave radar in all stainless steel design for applications in food and pharmaceutical industry.

Available with 3-A, EHEDG and BPE sanitary certificates.

Approvals & certificates

CE
ATEX Ex i
EHEDG
3A
EAC Ex
FM
IECEx
SIL 3
HART®
Profibus
FF

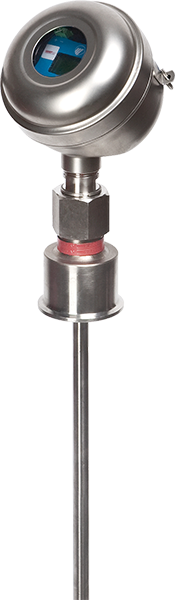

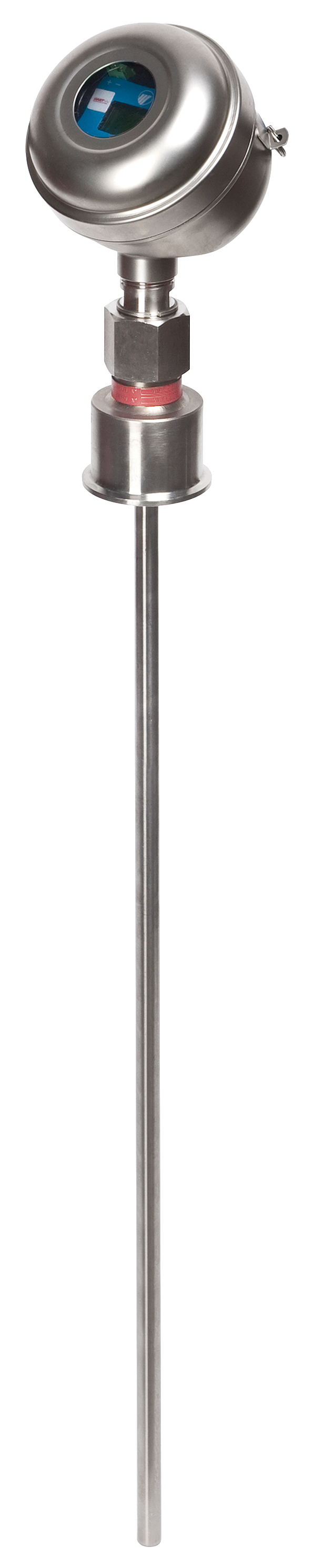

Eclipse® 705 in hygienic version is radar level transmitter with design which meets food and pharmaceutical industry requirements concerning wetted and non-wetted parts (housing), process connections and surface finish.

Encompassing a number of significant engineering accomplishments, this leading edge level transmitter is designed to provide measurement performance well beyond that of many traditional technologies, as well as “through-air” radars.

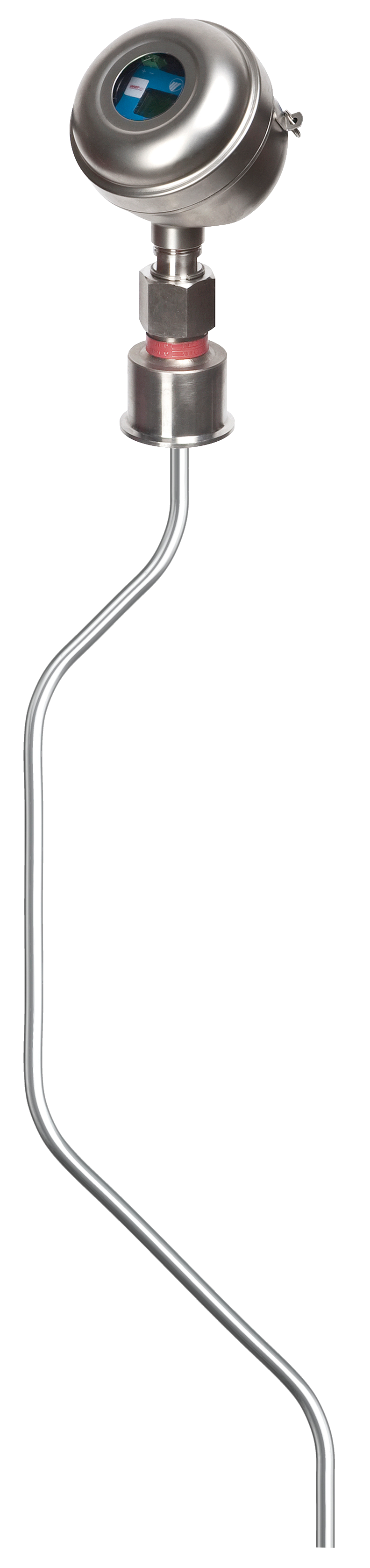

The unique feature of guided wave radar is possibility to bent a guided wave rod in such way that fits to tank shape in order to avoid agitator or other construction elements which unable proper level measurement.

Advanatges
Measuring ranges: up to 6,1 m

Media temperature: -40 to 150°C

Maximum pressure: up to 13,8 bar

No moving parts

"Real Level”, measurement not affected by media variables eg. dielectrics, pressure, density, pH, viscosity

Configuration "at desk"

2-wire loop powered intrinsically safe level transmitter

20 - point vessel linearization

360° rotatable housing can be dismantled without depressurizing the vessel

Local LCD with 3 programming buttons

Integral or remote electronics

Available different construction materials and sanitary process connections

Suitable design for CIP/SIP cleaning

Designed to Bio Processing Equipment (BPE) standards

SIL 3 certificate
- Variable pressure, level, interface level
- Output signal 4..20 mA analogue
- Digital communication HART®, Profibus, FOUNDATION Fieldbus™
- Accuracy 0.1%, 0.5%
- Repeatablity 2.5 mm
- ATEX Ex i
- Local display yes
- Process connection Tri-Clamp 1-1/2", Tri-Clamp 2", other
- Sensor / wetted parts material 316/316L, Hastelloy
- Seals Viton® / FKM / FPM, PEEK, EPDM
- Power supply 2 wire 24 VDC 4-20mA loop
- Housing stainless steel
- Ingress protection rating IP67
`
