Eclipse® 705 Guided Wave Radar

Magnetrol International

Magnetrol International

New generation Guided Wave Radar.

Encompassing a number of significant engineering accomplishments, this leading edge level transmitter is designed to provide measurement performance well beyond that of many traditional technologies, as well as “through-air” radars.

Approvals & certificates

CE
PED
ATEX Ex i
ATEX Ex d
ATEX Ex tD
EAC Ex
FM
IECEx
INMETRO
SIL 3
LR
HART®
Profibus
FF

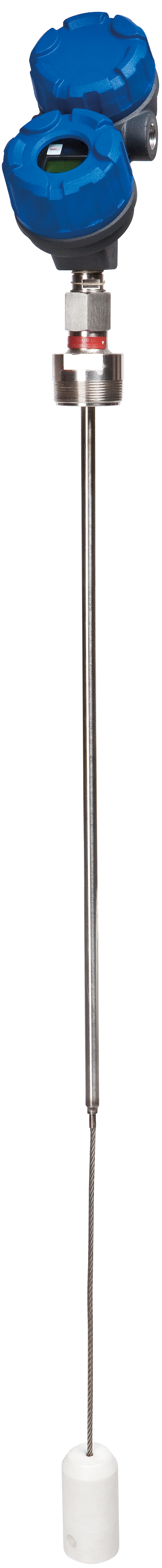

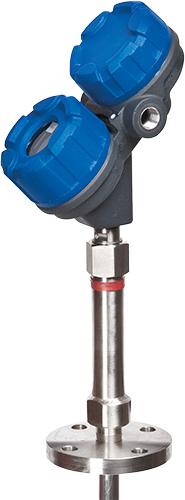

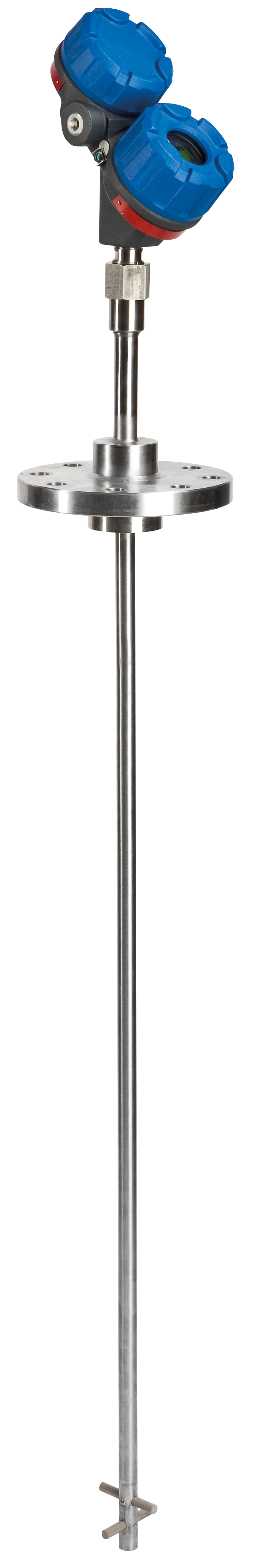

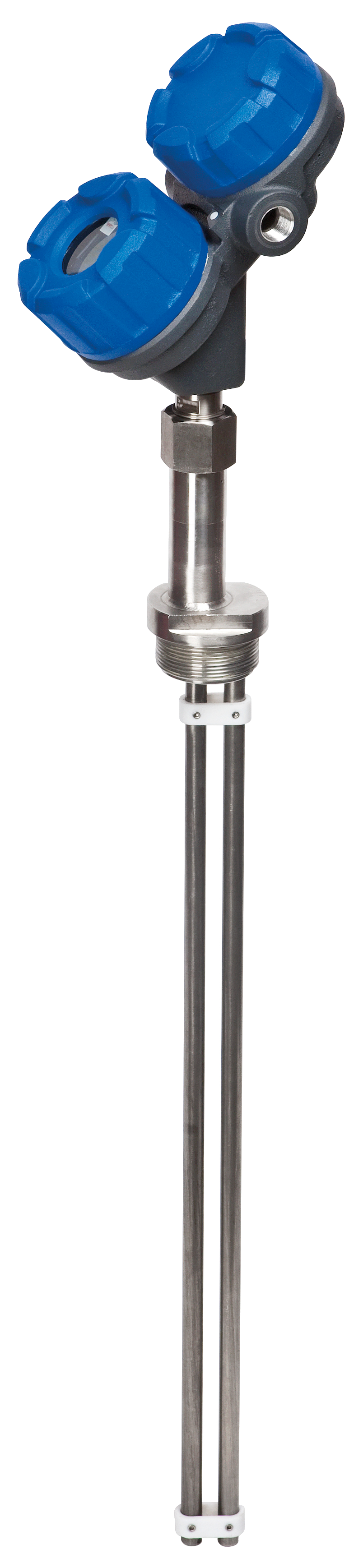

Eclipse® 705 Transmitter is a loop-powered, 24 V DC liquid- level transmitter based on the revolutionary Guided Wave Radar (GWR) technology.

Encompassing a number of significant engineering accomplishments, this leading edge level transmitter is designed to provide measurement performance well beyond that of many traditional technologies, as well as “through-air” radars.

Ergonomic and innovative dual compartment enclosure (separate compartment for electronics and wiring) enables easy wiring, configuration and data display.

Advantages
- Measuring ranges: up to 22 m
- Media temperature: -196 to 425 °C
- Maximum pressure: up to 430 bar
- No moving parts
- Real Level”, measurement not affected by media variables eg. dielectrics, pressure, density, pH, viscosity
- Configuration "at desk"
- 2-wire loop powered intrinsically safe level transmitter
- 20 - point vessel linearization
- 360° rotatable housing can be dismantled without depressurizing the vessel
- Local LCD with 3 programming buttons

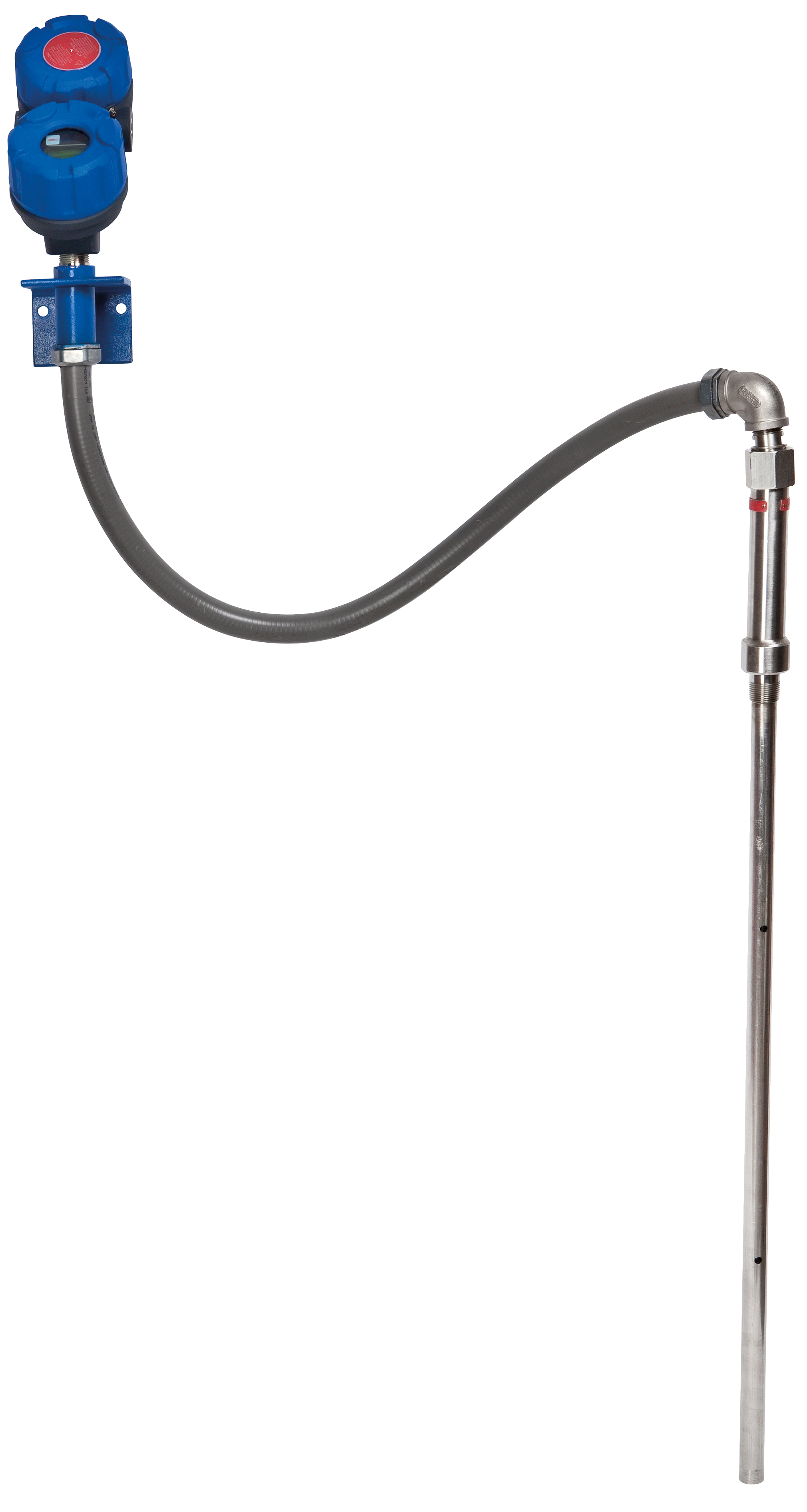

- Integral or remote electronics

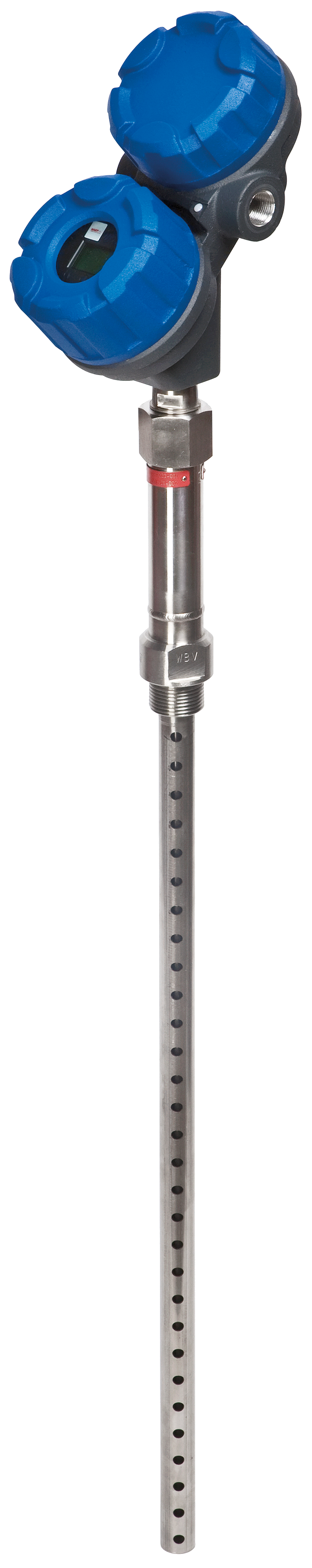

- Probes for interface and saturated steam measurement
- Available different construction materials and process connections
- SIL 3 certificate
- Variable level, interface level
- Output signal 4..20 mA analogue
- Digital communication HART®, Profibus, FOUNDATION Fieldbus™
- Accuracy 0.1%, 0.5%
- Repeatablity 2.5 mm
- ATEX Ex i, Ex d, Ex n, Ex tD
- Local display yes
- Process connection 1 BSPP male, 3/4 NPT male, 2 NPT male, other
- Sensor / wetted parts material 316/316L, Hastelloy, Monel, PTFE
- Seals Viton® / FKM / FPM, Kalrez®, Aegis PF 128 / Simriz® SZ 485, Inconel®, borosilicate glass, PEEK
- Power supply 2 wire 24 VDC 4-20mA loop
- Electrical connection M20x1.5 female, 3/4 NPT female
- Housing aluminum, stainless steel
- Ingress protection rating IP66
`

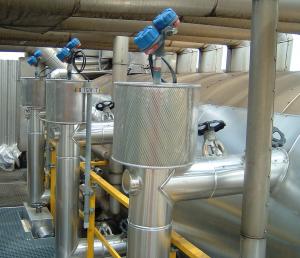

1. Steam drums' guided wave radar water level measurement

  Advantages of guided wave radar technology use with respect to other level measurement technologies in steam drum applications.
