A 304 98 Float switches

Bachofen

Bachofen

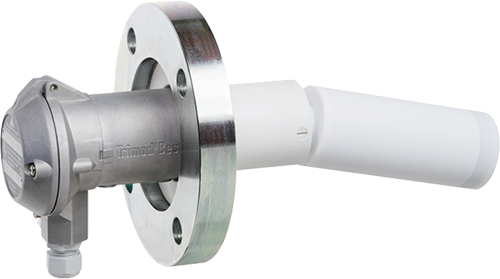

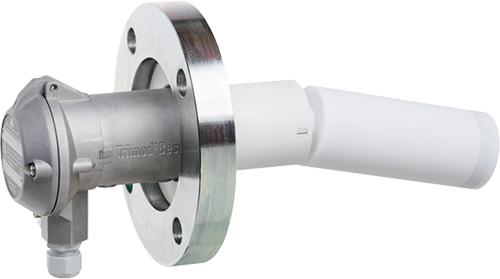

Pływakowy sygnalizator poziomu Trimod Besta A 304 98

The Bachofen float switches are characterized by the modular system of design that allows individual and numerous combinations of float, flange and switch modules to suit your specific requirements.

The Plastic Range float switches for corrosive or high purity media. The main feature of the Plastic Range is that all wetside materials are in corrosion resistant plastics such as PP, PTFE or PVDF. Switches are ideal for liquid level control or valve and pump control.

Approvals & certificates

  • CE CE
  • PED PED
  • EAC Ex EAC Ex
  • SIL 2 SIL 2
  • BV BV
  • DNV DNV
  • LR LR
  • ABS ABS
  • RINA RINA
  • RMRS RMRS
  1. Features
  2. Specification
  3. Downloads

  •  What distinguishes it from other level measurement methods is the fact that this float switches can work in application where there is foam, vibrations, change in dielectric constant or change in temperature.

    Features:

    • Side mounted
    • SPDT microswitch
    • Nominal pressure: PN 10 according to EN/DIN
    • Temperature: max +200°C
    • Density of liquid: from 0,75 kg/l
    • Housing material: sea water resistant die cast aluminium
    • Enclosure: IP65

    Options:

    • Vertical mounting
    • ATEX Ex ia or Ex d approval
    • NAMUR output, 2x SPDT, pneumatic
    • IP67 or IP68 housing
    • Nominal pressure: to PN320 (dependent on flange class and temperature)
    • PED certificate

    • Variable level
    • Output signal VDC switch, VAC switch
    • Process connection other
    • Electrical connection M20x1.5 female
    • Housing aluminum, stainless steel
    • Ingress protection rating IP65, IP67, IP68
  • `

    1. Bachofen TrimodBesta Series PED Certificate

      1.2MB | ENG

    2. Bachofen TrimodBesta Series Catalogue

      1.6MB | ENG

    3. Bachofen TrimodBesta ABS approval

      1.3MB | ENG

    4. Bachofen TrimodBesta BV approval

      1.3MB | ENG

    5. Bachofen TrimodBesta LR approval

      814kb | ENG

    6. Bachofen TrimodBesta RMRS approval

      1.2MB | ENG

    7. Bachofen TrimodBesta Katalog skrócony

      1.2MB | POL
