W30, W40, W50, W60, W70 Bar-stock thermowell

Nuova Fima

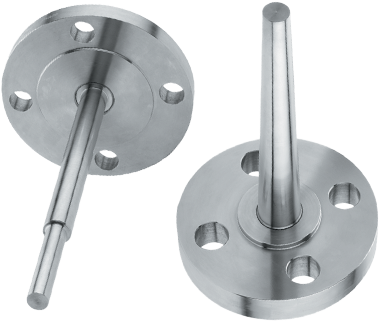

Threaded, flange or welded process connection

Construction materials: stainless steel, Monel, Hastelloy, Duplex and many other

Maximum process pressure 200 bar @ 400'C

Approvals & certificates

CE
NACE
ATEX Ex c

Thermowells are used to to protect the measuring instrument from corrosion, high pressure or hgih fluid velocity and to allow the measuring instrument removal for recalibration or replacement without affecting the process system.
The W30-W40-W50-W60-W70-W92-W93 serie includes bar-stocked thermowells with a threaded process connection and they are suitable for heavy work conditions.

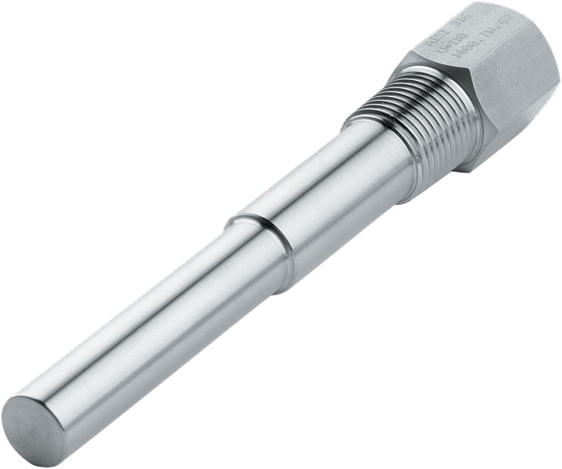

These thermowells have a stepped-shank immersion length for a better process temperature measuring sesibility.

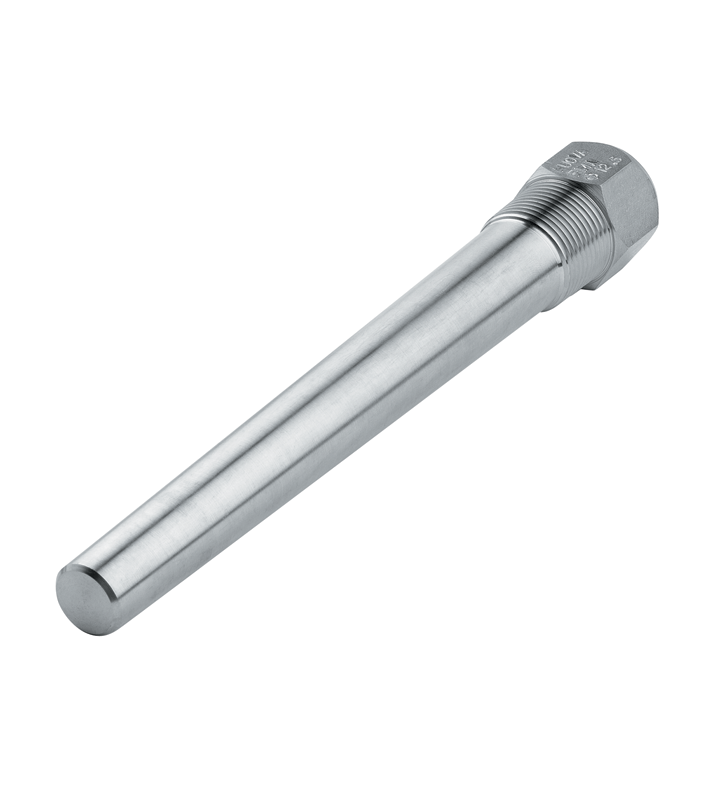

- drilled thermowell with a tapered or stepped design

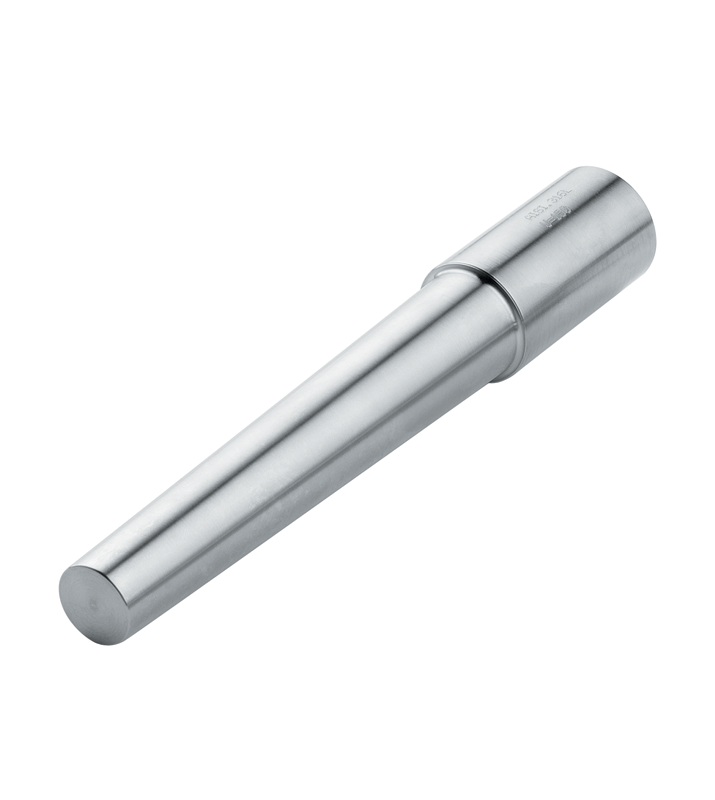

- process connection: threaded, welded
- many construction materials: stainless steel, Monel, Hastelloy, Duplex and many other
- ATEX version
- NACE version
- maximul insertion lenght: 1000 mm
- maximum process pressure: 200 bar @ 400'C
- Variable temperature
- Process connection 1/4 BSPP male, 1/2 BSPP male, 3/8 BSPP male, 3/4 BSPP male, 1 BSPP male, 1-1/2 BSPP male, 1-1/4 BSPT male, 1-1/2 BSPT male, M20x1.5 male, 1/4 NPT male, 1/8 NPT male, 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/4 NPT male, 1-1/2 NPT male, 2 NPT male, other
- Sensor / wetted parts material 316/316L, 316Ti, 304, Hastelloy, Monel, Duplex
`
