VSS Butterfly valves

SOMAS Instrument

SOMAS Instrument

Przepustnica regulacyjna VSS Somas

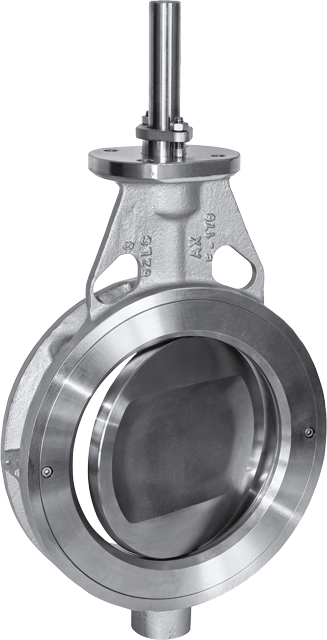

  • Somas VSS DN200 butterfly valve

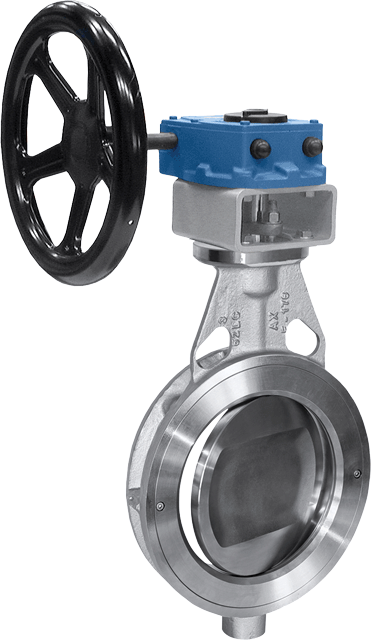

  • Somas VSS DN200 butterfly valve

VSS butterfly valves with tripple eccentric disc and metal seat provides excellent tightness even for pulp and high velocity applications. They can be used for steam, gasses and liquids. Standard make withstand temperaturea up to 500°C.

Approvals & certificates

  • CE CE
  • PED PED
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads

  • The butterfly valve is the most cost-efficient choice for control and on/off applications.

    Somas butterfly valves control flow in steam, gas, water or other fluids' applications for up to 500°C as standard. With optional material make higher temperatures are also available. The butterfly valve seat is made of solid steel which results in less sensitivity to high flow velocity and impurities in the media.

    Metal-seated butterfly valves have an advanced triple-eccentric design which - with metal seat design - provide excellent shut-off and eliminate the need for maintenance. The high surface pressure between seat and disc makes the valve useful for pulp applications where the fibres can be easily cut.

    Features

    • tripple eccentric disc
    • nominal size: DN80 to DN1200
    • nominal pressure: up to 100 bar
    • nominal temperature: up to 500°C
    • wafer (VSS), flanged (VSSF) or lugged (VSSL) models
    • body/disc material: CF8M/1.4408
    • seat material: metal or PTFE
    • leakage class: V, VI
    • Variable flow
    • Digital communication HART®, Profibus, FOUNDATION Fieldbus™, WirelessHART®
    • ATEX Ex i
    • Process connection flange, DIN flange, ANSI flange
    • Seals PTFE, metal-to-metal
  • `

    1. MERCON Valves Catalogue

      1.2MB | POL

    2. Somas VSS LN Datasheet

      423kb | ENG

    3. Somas VSS LUG Instruction manual

      2.8MB | ENG

    4. Somas VSS LUG Datasheet

      624kb | ENG

    5. Somas VSS międzykołnierzowe Instrukcja

      3.2MB | POL

    6. Somas VSS Wafer Instruction manual

      3.7MB | ENG

    7. Somas VSS Wafer Datasheet

      411kb | ENG

    8. Somas VSS Wafer LUG Datasheet

      1.3MB | ENG

    9. Somas Valve Guide EN

      4.6MB | ENG
