STG700 / STG800 SIL 2 / SIL 3 Intelligent pressure transmitters

Honeywell

Honeywell

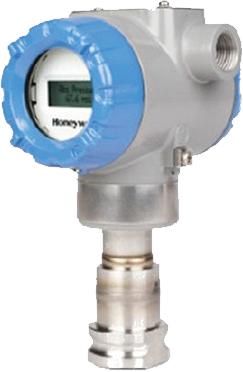

Przetwornik ciśnienia STG700 / STG800 Honyeywell

The SmartLine® STG700 series are gauge pressure transmitters. The variety of available versions and approvals ensures universal application in chemical and petrochemical industry as well as energy, pharmaceutical and marine applications. STG800 is characterized, among others, by higher accuracy class and better long-term stability.

Approvals & certificates

  • PED PED
  • CE CE
  • NACE NACE
  • ATEX Ex i ATEX Ex i
  • EAC Ex EAC Ex
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  • DNV DNV
  • LR LR
  • ABS ABS
  • HART® HART®
  • FF FF
  1. Features
  2. Specification
  3. Downloads

  • Honeywell SmartLine® STG700 transmitters are high-performance, advanced gauge pressure transmitters with piezoresistive sensors equipped with temperature compensation, meeting the highest requirements for reliability, accuracy, stability and rangeability. They are available with threaded, flanged, hygienic and diaphragm seals. The SmartLine family is fully compatible with the Experion® PKS (Process Knowledge System).

    Honeywell pressure transmitters are used in industry around the world. Local and remote sensor models are available.

    The STG800 model is characterized, comparing to the STG700, better accuracy and long-term stability.

    Application

    • chemical industry
    • petrochemical industry
    • energy
    • paper industry
    • food industry
    • other

    Features

    • measuring ranges: from 0..35 mbar to 0..690 bar
    • accuracy: up to 0.025%
    • long-term stability: up to 0.015% for 15 years
    • rangeability: 100: 1
    • temperature compensation
    • communication protocols: HART, Foundation Fieldbus, DE
    • certificates: SIL 2/3, ATEX Ex d, Ex ia, MRO175, MRO103, ISO15156 and others
    • warranty up to 15 years

    • Variable pressure, level
    • Output signal 4..20 mA analogue
    • Digital communication HART®, FOUNDATION Fieldbus™, Modbus®,
    • Accuracy 0.05%, < 0.075%
    • ATEX Ex i, Ex d, Ex n
    • Local display yes
    • Process connection threaded, DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, Hastelloy, tantalum, Monel
    • Seals graphite, PTFE
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Electrical connection M20x1.5 female, 1/2 NPT female
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66, IP67
  • `

    1. Honeywell STA800 Datasheet

      1.7MB | ENG

    2. Honeywell STR800 Datasheet

      2.2MB | ENG

    3. Honeywell STD700 Datasheet

      1.5MB | ENG

    4. Honeywell STG700 Datasheet

      1.8MB | ENG

    5. Honeywell STR700 Datasheet

      1.9MB | ENG

Similar products

  1. SIL 2 / SIL 3 Intelligent differential pressure transmitters

    STD700 / STD800 SIL 2 / SIL 3 Intelligent differential pressure transmitters

    Advanced differential pressure transmitters with accuracy up to 0,025%
