SMV800 SIL 2 / SIL 3 Multivariable intelligent level transmitters

Honeywell

Honeywell

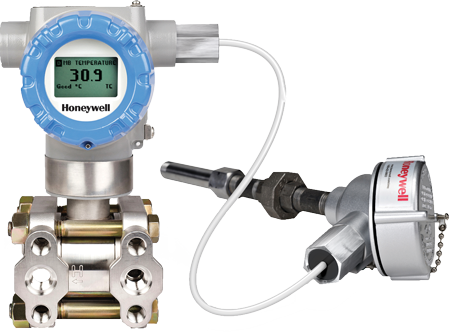

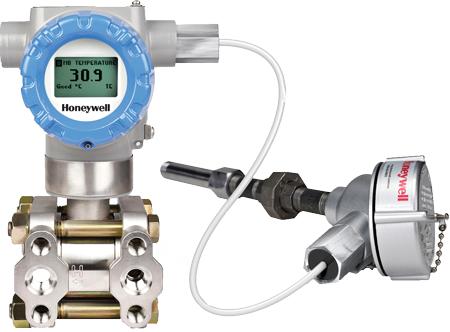

Przetwornik wielu zmiennych SMV800 Honeywell

The Honeywell SmartLine® SMV800 is multivariable transmitter used for measurement of the flow of liquids, gases and steam. Thanks to the pressure and temperture compensation can be used either in volume and mass flow applications. Wide range of approvals make these transmitters suitable for wide range of applications in the process industry, in particular chemical, petrochemical, as well as energy.

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex i ATEX Ex i
  • ATEX Ex d ATEX Ex d
  • IECEx IECEx
  • UL UL
  • cUL cUL
  • cULus cULus
  • SIL 2 SIL 2
  • SIL 3 SIL 3
  1. Features
  2. Specification
  3. Downloads

  • The SmartLine® SMV800 multi-variable transducers enable simultaneous measurement three variables - static pressure, differential pressure and temperature, which allows you to measure volumetric or mass flow of liquids, gases, and superheated or saturated pairs.

    Applications

    • chemical industry
    • petrochemical industry
    • energy
    • paper industry
    • food industry
    • other

    Features

    • measuring ranges:
      - pressure difference: from 0..2.45 mbar
      - absolute pressure: from 0..350 mbar-a
      - relative pressure: from 0 .. 4.2 bar-g
    • accuracy:
      - pressure: 0.0375%
      - temperature: 0.2o C
      - mass flow: from 0.6%
    • rangeability: 400: 1
    • communication protocols: HART, DE, Modbus
    • certificates: SIL 2/3, ATEX Ex d, Ex ia, NACE MRO175 and others
    • Variable differential pressure, flow, temperature, volume, mass
    • Output signal 4..20 mA analogue
    • Digital communication HART®, Modbus®,
    • Accuracy < 0.075%
    • ATEX Ex i, Ex d
    • Local display yes
    • Process connection 1/4 NPT female, other, threaded, DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, Hastelloy, tantalum, Monel
    • Seals Viton® / FKM / FPM, PTFE
    • Power supply 2 wire 24 VDC 4-20mA loop
    • Housing epoxy coated aluminum
    • Ingress protection rating IP66, IP67
  • `

    1. Honeywell SMV800 Datasheet

      1.2MB | ENG
