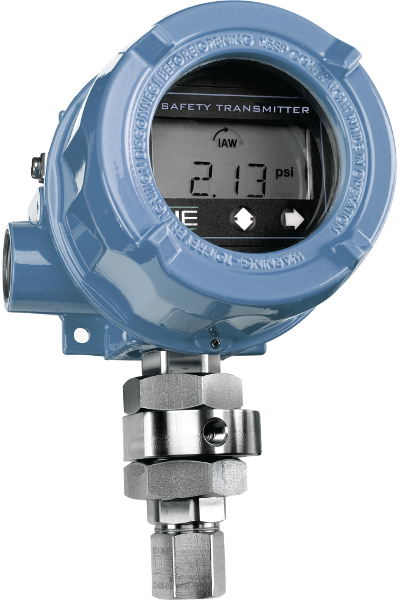

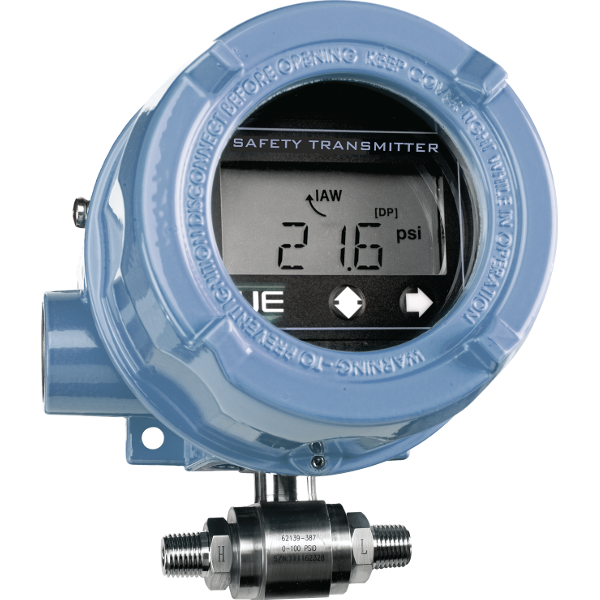

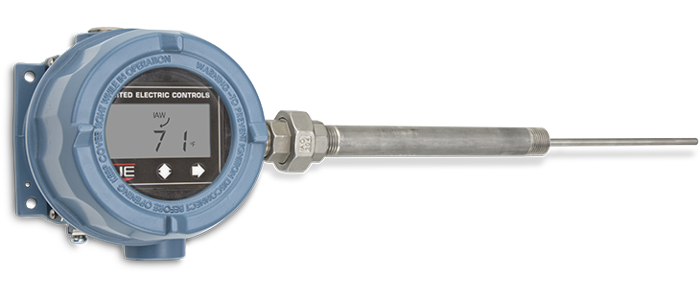

ONE Series 1XTX Pressure, differential pressure and temperature transmitters
United Electric Controls
1XTX00 is 2-wire loop powered transmitter with 4-20mA + HART analog output.
1XTXSW model, thanks to its additional 4-20mA + HART analog output, can replace 3 devices - switch, pressure gauge (thermometer) and transmitter. 1XTXSW can be loop or external powered.
Approvals & certificates
-
PED
-
CE
-
ATEX Ex i
-
ATEX Ex d
-
EAC Ex
-
IECEx
-
INMETRO
-
UL
-
The ONE Series electronic pressure and temperature switches set the standard for smart digital process monitoring. The ONE Series digital solid-sate design consists of no moving parts.
1XTX transmitters are characterized by easy configuration, quick installation and high level of safety.
Features:
- Display and keypad provide easy, fast and secure field programming while in service
- Digital process display provides process conditions at a glance
- Programmable set point and deadband provides accurate and fast cycling for rotating equipment
- Nuisance trip filtering eliminates unwanted nuisance trips and unnecessary alarms
- ATEX Ex d, Ex ia and Ex nL approval as standard
-
- Variable pressure, differential pressure, temperature
- Output signal 4..20 mA analogue, VDC switch, VAC switch
- Digital communication HART®
- Accuracy 0.5%
- Repeatablity 0.1%
- ATEX Ex i, Ex d
- Local display yes
- Process connection 1/2 BSPP male, 1/4 NPT male, 1/2 NPT female
- Sensor / wetted parts material 316/316L
- Power supply external 24 VDC, external 230 VAC, 2 wire 24 VDC discreet loop
- Electrical connection 3/4 NPT female
- Housing epoxy coated aluminum
- Ingress protection rating IP66
-
`
-
UE EAC Certificate
1.8MB | ENG
-
UE IECEx Certificate
435kb | ENG
-
UE LVD CE Declaration
206kb | ENG
-
UE PED CE Declaration
96kb | ENG
-
UE Short form catalogue
14MB | ENG
-
UE ONE 1XTX Series Installation manual
1.9MB | ENG
-
UE ONE 1X Series ATEX Ex d and Ex i certificate
1.9MB | ENG
-
UE ONE 1X Series Datasheet
6MB | ENG
-
UE ONE 1X Karta katalogowa
811kb | POL
-
UE ONE 1X Series EN 17050-1 Declaration of conformity
317kb | POL
-
Similar products
-
ONE Series 1XSW Smart transmitters
Reliable and easy to configurate that can be connected as traditional electronic switches
details -
ONE 2SLP SIL 2 safety transmitters
SIL2 certified, safety transmitter designed specifically for Safety Instrumented Systems
details -

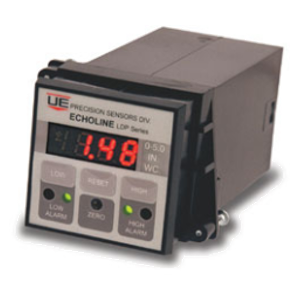

LPS Low pressure switching monitors
