Gemini™ Magnetic level indicator with guided wave radar chamber

Magnetrol International

Magnetrol International

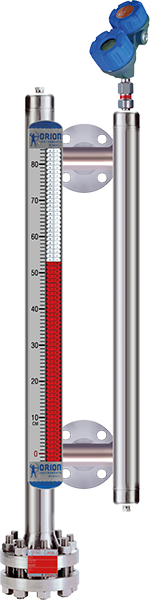

Poziomowskaz magnetyczny z radarem falowodowym Gemini Magnetrol

Magnetic level indicator connected with separate measuring chamber of Eclipse® guided wave radar.

Dual chamber design of Gemini™ magnetic level indicator ensures redundant level measurement.

Available are 18 different configuration styles of magnetic level indicator made of metallic materials.

Approvals & certificates

  • ATEX Ex c ATEX Ex c
  • EAC Ex EAC Ex
  1. Features
  2. Specification
  3. Downloads

  • Gemini ™ magnetic level indicator consists of magnetic level indicator float chamber connected with separate measuring chamber of Eclipse® guided wave radar. Such design enables totally redundant level measurement.

    Conventional level transmitters mounted externally on magnetic level indicator chamber work on the basis of magnetic coupling with level indicator float which plays key function of whole measuring system. Damage of the float due to presence of very turbulent conditions in the process causes simultaneously lost of transmitter measuring signal.

    Dual chamber design of Gemini™ magnetic level indicator enables accurate, reptable and float independent continuous level measurement via Eclipse® guided wave radar.

    Advantages

    • Measuring ranges up to: 15 m
    • Medium temperature: -196 to 540 °C
    • Maximum pressure: 310 bar
    • Minimum medium density: 0,49 kg/dm³
    • Optional level switches or transmitters for mounting on float magnetic level indicator chamber
    • Rest technical data as per Atlas™ / Eclipse®

    • Variable level, interface level
    • ATEX Ex c
    • Process connection 1/2 NPT male, 3/4 NPT male, 1 NPT male, 1-1/2 NPT male, 2 NPT male, 1/2 NPT female, Tri-Clamp 1-1/2", Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L, 304, Hastelloy, Monel, titanium
  • `

    1. Magnetrol Gemini Certificate ATEX Ex c

      135kb | ENG

    2. Magnetrol Gemini User manual

      480kb | ENG

    3. Magnetrol Aurora Atlas Gemini Datasheet

      6.3MB | ENG

    4. Magnetrol Product Line Quick Reference

      4.9MB | ENG
