FREQROL Frequency inverters
Mitsubishi Electric

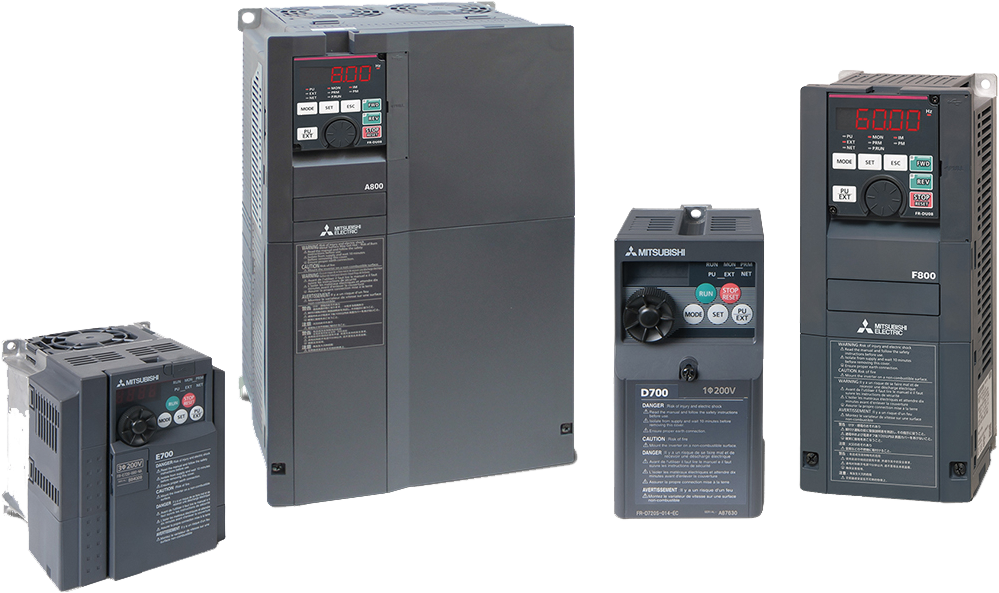

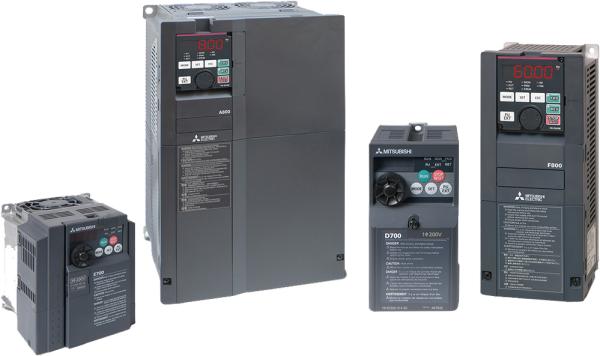

A wide range of FREQROL frequency inverters starting from FR-D700 for basic applications, through FR-E700, up to high performance FR-A800, , FR-A800 Plus and FR-F800.
Approvals & certificates
-
CE
-
Drives with frequency inverters are the base for the industrial automation.
They allow for efficient control of the engines' speed and their torque. Mitsubishi inverters allow to save energy by maximizing drive capacity with minimal power consumption. This is due to the optimization of the magnetic flux, thanks to which the engine receives exactly the magnetic flux that is required for maximum efficiency. Below are selected models from the wide range of Mitsubishi frequency inverters::

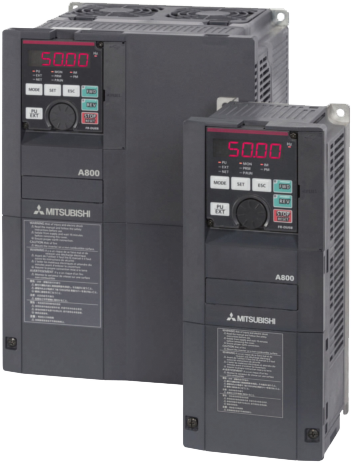

FR-A800
High-function, high-performance inverters for high torque and high precision control.
- Rated motor output range: 0,4-630 kW
- Power supply: 3-phase 380-400 V, 500 V
- Frequency range: 0,2-400 Hz
- Applications: chemical machines, lifts and cranes, conveyors, centrifuges, hydraulic systems.
FR-F800
High-function, high-performance inverters with developed by Mitsubishi Electric advanced optimum excitation control which provides, comparing to conventional power supply, up to 60% energy savings.
- Rated motor output range: 0,75-630 kW
- Power supply: 3-phase 200-240 V / 380-500 V
- Frequency range: 0,2-590 Hz
- Applications: fans, pumps, compressors.
FR-E700
Medium-function, high performance, compact inverters thanks to advanced magnetic flux vector control enables accurate start-ups for general-purpose industrial machines.
- Rated motor output range: 0,4-15 kW
- power supply: 3-phase 380-400 V
- Frequency range: 0,2-400 Hz
- Applications: machine tools, conveyors, lifts, hydraulic systems.

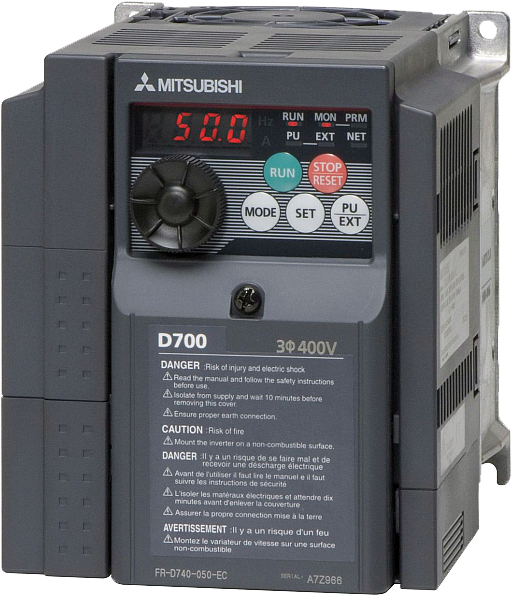

FR-D700
Compact frequency inverters for standard applications..
- Rated motor output range: 0,1-2,2 kW
- Power supply: 1-phase 200-240 V
- frequency range: 0,2-400 Hz
- Applications: conveyors, lifts, machine tools, fans, pumps.
Features
- SLV- Vector Control and V/f Control (fully programmable)
- Online Autotuning and automatic slip compensation for outstanding speed stability
- Soft PWM function for reduced motor noise
- OEC technology for maximum power savings
- Active current limiting (tripless operation)
- Automatic restart after power failures
- Flexible control units and intuitive configuration and setup
-
-
`
-
