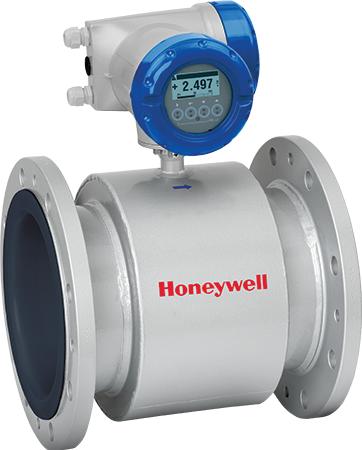

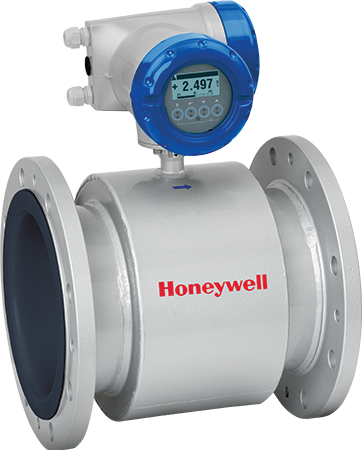

VersaFlow Electromagnetic flowmeters

Honeywell

Honeywell

Przepływomierz elektromagnetyczny Versaflow Honeywell

Electromagnetic flowmeters are suitable for conductive liquids, pastes, slurries and viscous products. The modular design ensures proper choice of the electronics - TWM 1000 or TWM 9000 converter - according to the requirements. The sensors are available in nomimnal size from 1 to 10 inches.

Approvals & certificates

  • CE CE
  • ATEX Ex i ATEX Ex i
  • FM FM
  • HART® HART®
  • FF FF
  • Modbus® Modbus®
  1. Features
  2. Specification
  3. Downloads

  • VersaFlow electromagnetic flow meters are suitable for clean, aggressive or abrasive liquids as well as pastes and pulps, also with solids content. With MAG flow meters, you can measure volumetric flow, mass flow (at constant density), conductivity and linear velocity.

    VersaFlow electromagnetic flow meters have a modular design - the TWM 1000 or TWM 9000 converter electronics can be attached to the universal sensing part. The TWM9000 offers additional communication options compared to the 1000 model - analog HART, Modbus and Foundation Fieldbus. Optional function of the so-called Virtual Reference eliminates the need for grounding rings in many applications, helping to reduce costs and possible leak points in the installation. The TWM1000 has a smaller number of available functions than the TWM9000, but a lower, economical price.

    Applications

    • chemical
    • pulp & paper
    • oil & gas
    • power plants

    Features

    • nominal size: DN2,5 to DN2000
    • medium temperature: -40 to 180oC
    • conductivity: from 1 μS/cm (water from 20 μS/cm)
    • accuracy: ±0,15 %
    • repeatability: ±0,06 % acc. to OIML R117
    • communication protocols: HART, Profibus PA i DP, Foundation Fieldbus, Modbus
    • wide range of materials
    • integral and remote versions available
    • certificates: ATEX Ex d, Ex ia
    • Variable flow
    • Output signal 4..20 mA analogue, pulse
    • Digital communication HART®, FOUNDATION Fieldbus™, Modbus®
    • Accuracy 0.1%
    • Repeatablity 0.05%
    • ATEX Ex i
    • Local display yes
    • Process connection flange, DIN flange, ANSI flange
    • Sensor / wetted parts material 316/316L, 316Ti, carbon steel, Hastelloy, tantalum, titanium, PTFE, Platinum
    • Housing epoxy coated aluminum, stainless steel
    • Ingress protection rating IP66, IP67, IP68
  • `

    1. Honeywell EM VersaFlow 2000 6-10\" Datasheet

      115kb | ENG

    2. Honeywell EM VersaFlow 4000 1-6\" Datasheet

      100kb | ENG

    3. Honeywell EM VersaFlow TWM 1000 converter Datasheet

      370kb | ENG

    4. Honeywell EM VersaFlow TWM 9000 converter Instruction Manual PL

      2.7MB | POL

    5. Honeywell EM VersaFlow TWM 9000 converter Datasheet

      457kb | ENG
