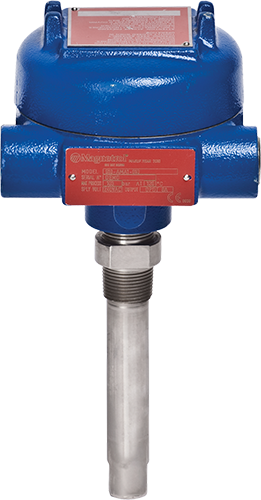

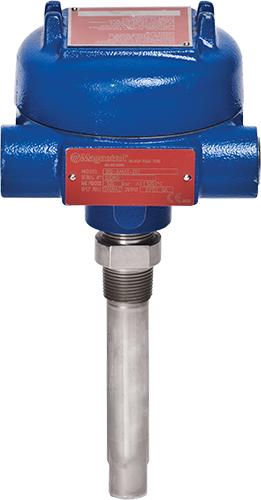

Echotel® 910 OEM Ultrasonic switches

Magnetrol International

Magnetrol International

Ultradźwiękowe sygnalizatory poziomu OEM Echotel 910 Magnetrol

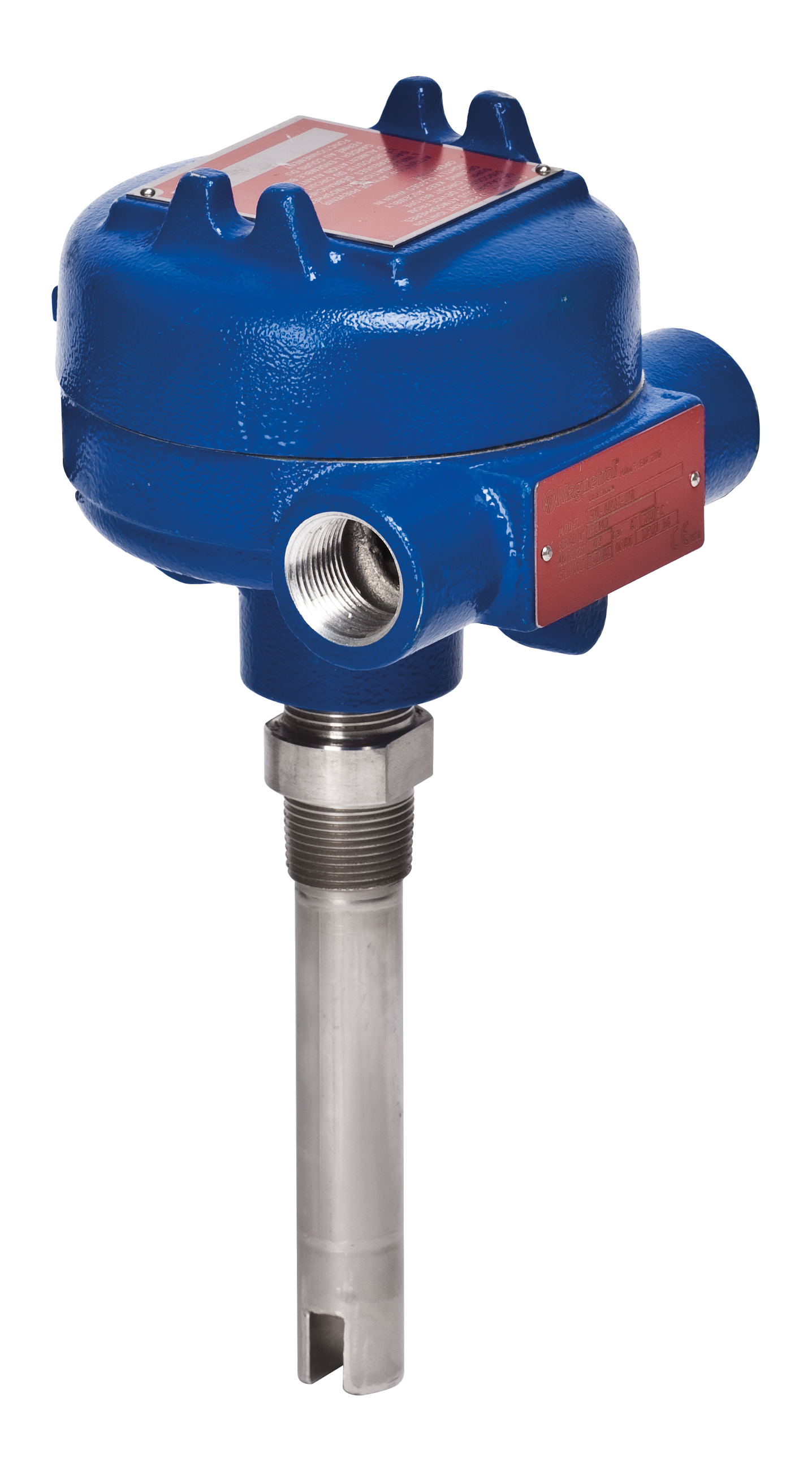

  • Echotel® 910 with threaded process connection and weatherproof aluminium housing

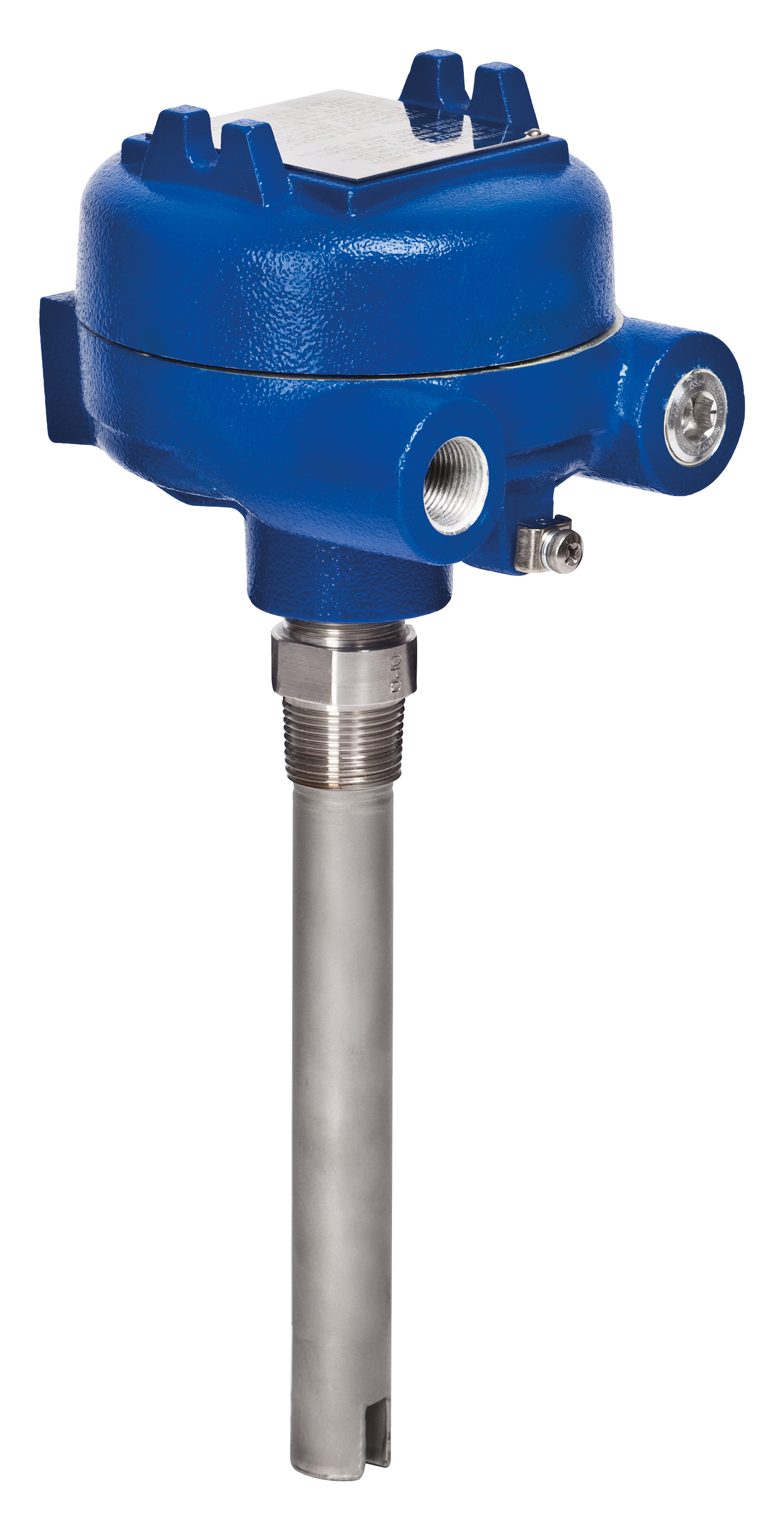

  • Echotel® 910 with threaded process connection and flameproof aluminium housing according to ATEX

OEM ultrasonic level switches with goldflash or hermetically sealed DPDT relays.

Echotel® 910 switches work on the basis of ultrasonic detection of contact sensor with medium.

They can be utilized as dry run pump protection, overfill protection or as low/high liquid level switch with foam presence.

Approvals & certificates

  • PED PED
  • CE CE
  • ATEX Ex d ATEX Ex d
  • EAC Ex EAC Ex
  • FM FM
  1. Features
  2. Specification
  3. Downloads

  • Echotel® 910 are ultrasonic switches with goldflash or hermetically sealed DPDT relays which work on the basis of ultrasonic detection of contact sensor with medium.

    Switches have ultrasonic sensitive tip at the end of the probe which allows them to be used as dry run pump protection, overfill protection or as low/high liquid level switch with foam presence.

    Advantages

    • Insertion length: up to 2,5 m
    • Medium temperature: -40 to 120 °C
    • Maximum pressure: 55,2 bar
    • No calibration
    • A built-in averaging circuit ensures no false alarms due to most effervescence or turbulences
    • Field selectable high/low level failsafe

    • Variable level
    • Output signal VDC switch, VAC switch
    • ATEX Ex d
    • Process connection 1 BSPP male, 3/4 NPT male, 1 NPT male, Tri-Clamp 1-1/2", Tri-Clamp 2", other
    • Sensor / wetted parts material 316/316L
    • Power supply external 24 VDC, external 230 VAC
    • Electrical connection M20x1.5 female, 3/4 NPT female
    • Housing epoxy coated aluminum, stainless steel
    • Ingress protection rating IP65
  • `

    1. Magnetrol Echotel 910 Datasheet

      565kb | ENG

    2. Magnetrol Echotel 910 User manual

      667kb | ENG

    3. Magnetrol Echotel 910 Certificate ATEX Ex d

      142kb | ENG

    4. Magnetrol Echotel 910 Report FMEDA SIL

      1.9MB | ENG

    5. Magnetrol Echotel 910 Manual DE

      832kb DE

    6. Magnetrol Echotel 910 Datasheet DE

      700kb DE

    7. Magnetrol Product Line Quick Reference

      4.9MB | ENG

Similar products

  1. Ultrasonic switches

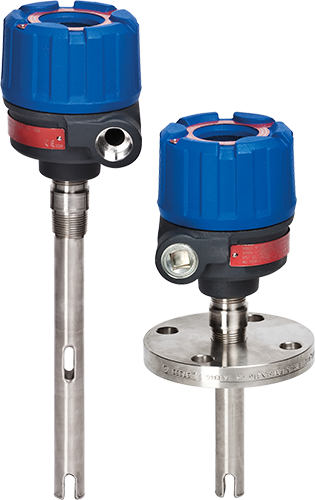

    Echotel® 961/962 Ultrasonic switches

    Ultrasonic level transmitter Echotel® 961 and pump controller Echotel® 962.

    details

  2. Thermal dispersion switches

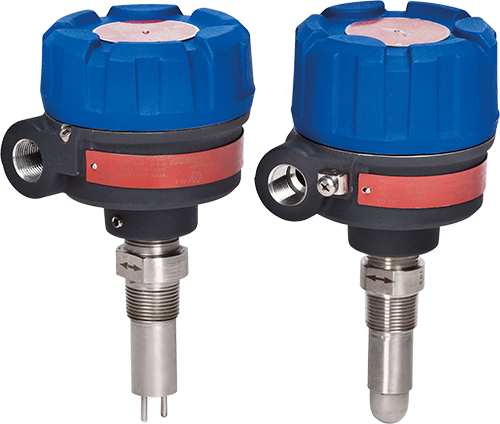

    Thermatel® TD1/TD2 Thermal dispersion switches

    Thermal dispersion switches of gas and liquid flow, liquid level and interface

    details

  3. Capacitive Level Sensors

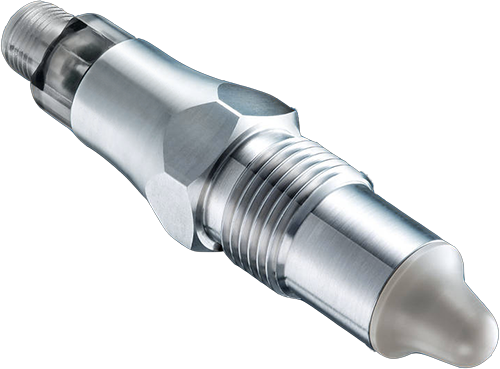

    BLS Series Capacitive Level Sensors

    Capacitive level sensors that can measure liquids of all kind, foams, bulk goods, granulates, even in liquids that are sticky, pasty and regardless of their viscosity

    details
